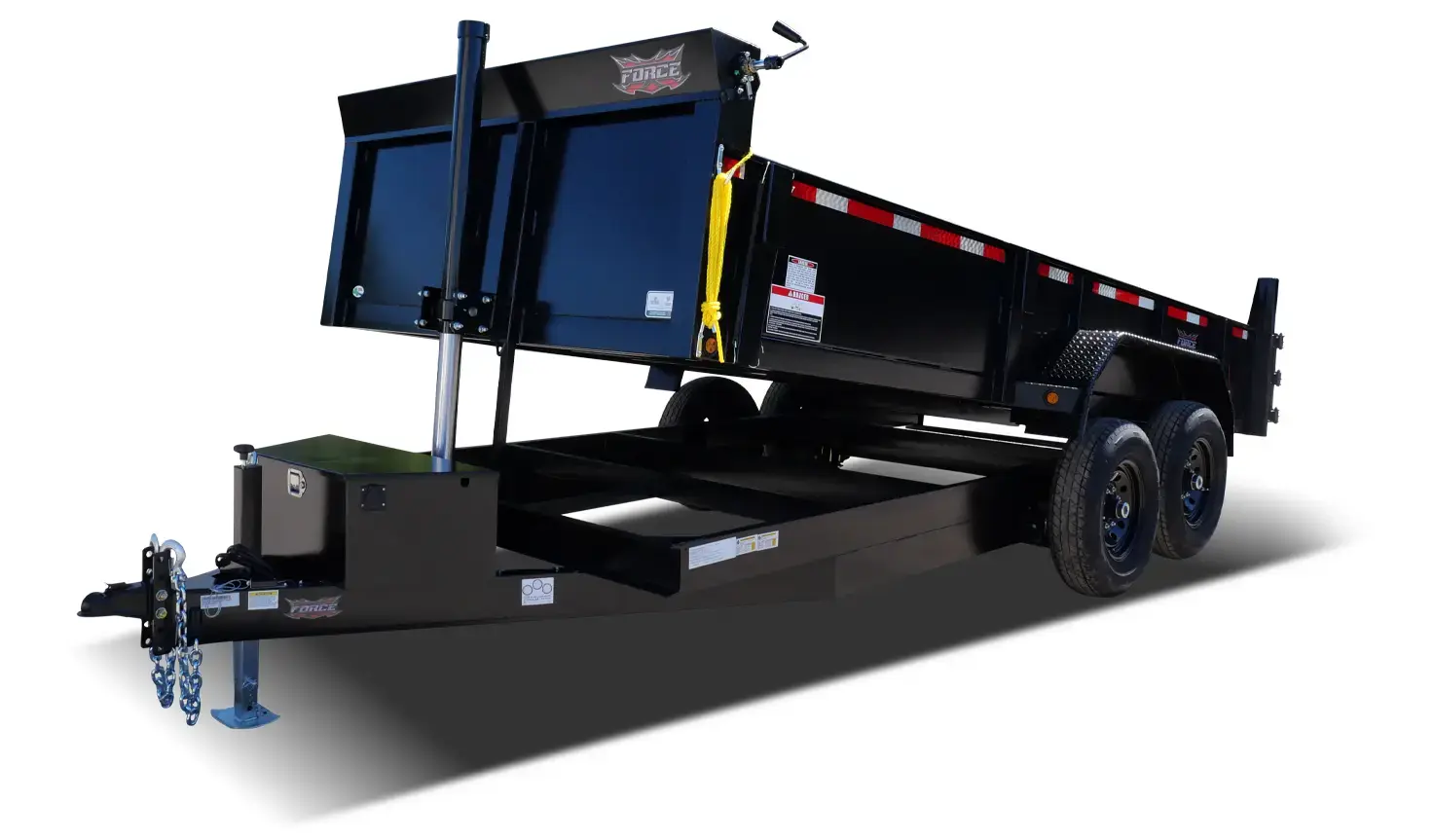

HEAVY DUTY DUMP TRAILERS

Our hydraulic dump trailers are built strong to withstand the toughest of jobs. A versatile product line where quality and durability equal reliability.

VIEW THE TOP 10 REASONS TO BUY FORCE HEAVY DUTY DUMP TRAILERS

Specifications

Print

Floorplan:HDL510TA2HDL6812TA4HDL6814TA5HDLPS610TA3HDLPS612TA3HDS610TA3HDS612TA3
Total Length:14' 16' 2"18' 2"14' 16' 14' 16'
Bed Width:6' 6"8' 6"8' 6"7' 10"7' 10"6' 4"6' 4"
Bed Length:10' 12' 14' 10' 12' 10' 12'
Bed Width:5' 6' 10"6' 10"6' 6' 6' 6'
Deck Height:17"21"21"25"25"29"29"
Sides:18"/10ga.Steel21"/10ga.Steel21"/10ga.Steel18"/10ga.Steel18"/10ga.Steel18"/10ga.Steel18"/10ga.Steel
Floor:10ga Steel10ga Steel10ga Steel10ga Steel10ga Steel10ga Steel10ga Steel
Frame:2" x 5" Tube2" x 6" C-Channel2" x 6" C-Channel2" x 6" C-Channel2" x 6" C-Channel2" x 6" C-Channel2" x 6" C-Channel
GVWR:7,000 lb.12,000 lb.14,000 lb.9,800 lb.9,800 lb.9,800 lb.9,800 lb.
Empty Weight:2,300 lb.3,500 lb.3,700 lb.2,950 lb.3,150 lb.2,850 lb.3,050 lb.
Payload:4700 lb.8500 lb.10300 lb.6850 lb.6650 lb.6950 lb.6750 lb.
Cylinders:(1) 3.5" Pwr. Up/DnScissor LiftScissor Lift(1) 3.5" Pwr. Up/Dn(1) 3.5" Pwr. Up/Dn(1) 3.5" Pwr. Up/Dn(1) 3.5" Pwr. Up/Dn
Spring Axles:(2) 3,500lb 4" Drop(2) 6000lb 4" Drop(2) 7000lb 4" Drop(2) 5200lb Straight(2) 5200lb Straight(2) 5200lb Straight(2) 5200lb Straight
Brakes:(2) Electric(2) Electric(2) Electric(2) Electric(2) Electric(2) Electric(2) Electric
Tires:ST205/75R15LRCST235/80R16LREST235/80R16LREST225/75R15LRDST225/75R15LRDST225/75R15LRDST225/75R15LRD
Coupler Size:Adjustable 2-5/16"Adjustable 2-5/16"Adjustable 2-5/16"Adjustable 2-5/16"Adjustable 2-5/16"Adjustable 2-5/16"Adjustable 2-5/16"
Jack:7000700070007000700070007000
Stake Pockets:6666666
5,000 lb D-Rings:5555555
Ramps:PairPairPairPairPairN/AN/A
Dump Gates:2-Way Combo Gate2-Way Combo Gate2-Way Combo Gate2-way combo gate2-Way Combo Gate2-Way Combo Gate2-way combo gate

Features & Options

Print
  • 2-Way Combo Gate (Barn Door & Spreader)
  • Heavy Duty Ramps (Not on Deck Over Models)
  • (5) Wall Mount D-Ring Tie Downs
  • Ratchet Style Load Tarp w/ Protective Shield
  • LED Lights
  • 2-5/16" Adjustable Coupler
  • 7k Square Drop Leg Jack
  • Spare Tire Mount
  • Premium High Gloss Powder Coat Finish
  • Scissor Lift (6.8 models only)
  • On-Board Battery Charger
  • Additional 5,000 lb. Floor Mount D-Rings
  • Side Tie-Down Rails
  • Spare Tire
  • Underbody Storage (6.8 models only)
  • Telescoping Cylinder (14' models only)
  • Slipper Spring Axles (7k only)
  • 4 Optional Colors Available (Red, Blue, Gray and Green)
